WL460B Rabar Tying Tool

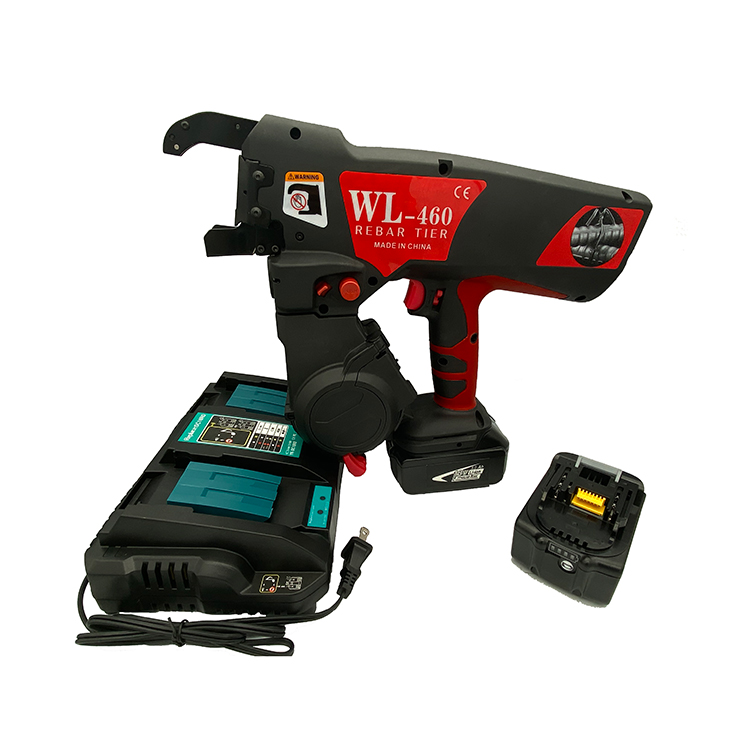

WL460 Rebar Tying Tools
The WL460 is the cutting edge rebar tying tool. It is lightweight and has a conservative, simple to hold, glove-friendly grip. The device is balanced and is intended to tie rebars as quick as you can pull the trigger. The long-life battery will give you 4600 ties on a single charge. We incorporate an additional battery that can be charging when the tool is being used. This device will wave you time and cash.
Features
Rapid Speed
Dual Wire Feeding System increase efficiency.
Money Saving
Wire Pull-Back Mechanism gives the exact measure of wire required to shape a tie, cutting down wire use.
Limited Tie Height
A Wire Bending Mechanism creates a more limited tie height. Less concrete is required to completely cover a wire tie
Wide Range
Large jaw enables the tool to tie from 10mm x 10mm(#3 x#3) to 25mm x 19mm( #7 x #7) rebar.
Long Battery Life
Up to 4,600 ties at one single charge
Twintier (CE Approval)
| Model No. | WL-460(Li-ino) |
| Max Tying Diameter | 46mm |
| Voltage & Capacity | DC18V(5.0AH) |
| Charge Time | Approx.70mins |
| Tying speed per knot | 0.6 seconds |
| Ties per Charge | Over 4600 ties |
| Ties per Coil | Approx.260ties(1turns) |
| Length of Wire for Tying | 10-16cm |
| Net Weight | 1.8kgs |
| Dimension(L)X(W)X(H) | 350mmX120mmX300mm |
Packing Info.
One set including:
. 1Pc Rebar tier machine
. 2Pc Battery pack
. 1Pc Quick charger
. 2Pcs of steel wire rolls
. 1PcSpecification
. 1pc of Inner Hexagon Spanner
. 1pc of Sharp Nose Pliers
Inner case Size: 54×40×13cm
Carton size for 3sets: 56×43×40cm
GW of one set: 7.5kg
Spare Parts for Rebar Tying Machine if you have extra needs.
| Wire (Black annealed wire or Galvanized wire) | |||
| Model | WL | ||
| Diameter | 1.0mm | ||
| Material | 55 | ||
| Length | 33m | ||
| Packing Info. | 50pcs/carton box, 420*175*245（mm）, 20.5KGS, 0.017CBM | ||
| 2500pcs/pallet, 850*900*1380（mm),1000KGS, 0.94CBM | |||
| Battery | |||
| Model | WL-4SX(Li-ion) | ||
| Voltage & Capacity | DC 18V(5.0Ah) | ||
| Charge Time | Approx. 70 minutes | ||
| Dimension(L)X(W)X(H) | 115（L）*70(W)*75(H) （mm） | ||
| Net Weight | 620g | ||
| Charger | |||
| Model | WL-4A | ||
| Charger Voltage | 110V-240V | ||
| Frequency | 50/60HZ | ||
| Dimension(L)X(W)X(H) | 256.1（L）* 168.68（W）* 80（H）（mm） | ||
| Net Weight | 714g | ||
